| Product |  HMA-31 |
 HMA-40 |
| Diameter(mm) | 310 | 406.4（16"） |
| Wide(mm) | 150 | 234 |
| Wheels | 7×2 | 6×2 |
| Bearing Type | heavy duty Rolling Bearing | |
| Wheel Material | Polyurethane | |
| Hub Material | Aluminum | steel |
| Hub Surface Treatment | High-Temperature Painting | |
| Mount | Flange | |
| Flange Plate Thinckness(mm) | 18.5 | 27 |
| Flange Plate Diameter(mm) | 112 | 131 |
| Flange Cavity Inner diameter(mm) | 126 | 139 |
| Typical Middle Hole Size(mm) | 45 | 45 |
| Weight(kg) | 16 | 45 |
| Load(kg) | 600 | 1300 |

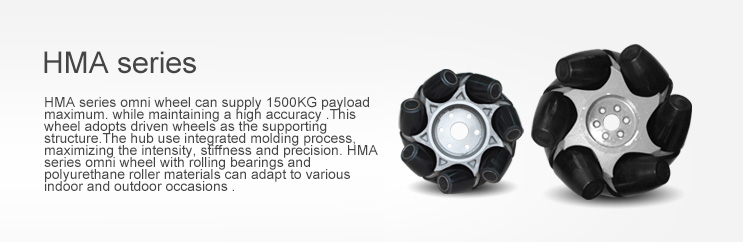

- integrated molding process hub , high intensity ,high stiffness
- This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable .
- Rolling Bearing
- Compared to sliding bearings and no bearings structure ,HMA series omni wheel use rolling bearing design . (to achieve ) It’s little friction, high precision ,high reliability ,convenient fix and it can be suitable for the continuous use .
- load capacity between 0-1300KG。
- The load capacity of this series can be 0-1300KG
- better passing performance
- The supporting structure of driven wheel, which makes the wheel hub less likely to touch the ground, improved the ground adaptability and passing performance of the Omini wheel.
- industrial-grade quality
- design and manufacture in accordance with industry standard。
