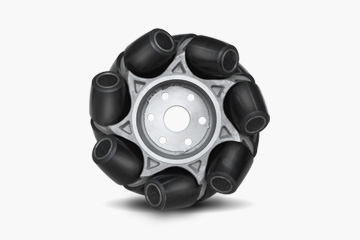

- HMA-31 Omni Wheel
- Product Description
- HMA series omni wheel can supply 1300KG payload maximum. while maintaining a high accuracy .This wheel adopts driven wheels as the supporting structure.The hub use integrated molding process, maximizing the intensity, stiffness and precision. HMA series omni wheel with rolling bearings and polyurethane roller materials can adapt to various indoor and outdoor occasions .
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingload capacity between 0-1300KGindustrial-grade quality

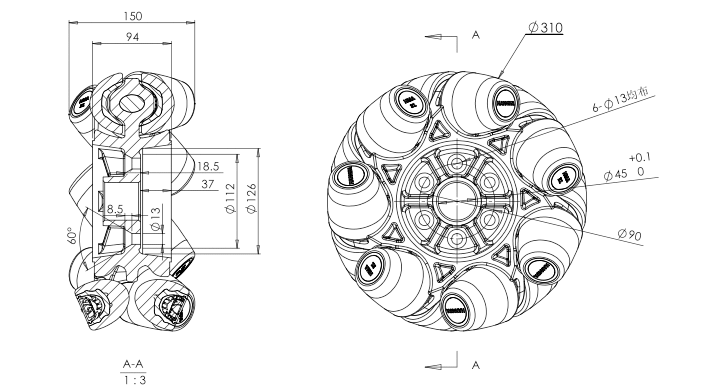

- Dimension
- Detailed Images
Diameter: 310mm Wide: 150mm Wheels: 7×2 Bearing Type: heavy duty Rolling Bearing Wheel Material: Polyurethane Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting Mount: Flange Flange Plate Thinckness: 18.5mm Flange Plate Diameter: 112mm Flange Cavity Inner diameter: 126mm Typical Middle Hole Size: 45mm Weight: 16Kg Load: 800Kg
- Display
-

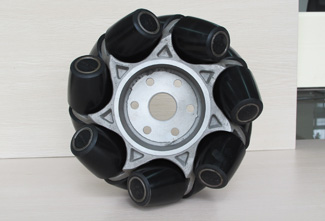

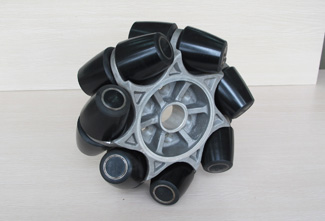

Realistic picture
Realistic picture - Document download
- HMA-31CN.pdf
