- QMA-15 Omni Wheel
- Product Description
- QMA series omni wheel is 45-degree light payload omni wheel. 2 ball bearings embedded in every driven wheel, Using high precision manufacturing process , it is aimed to supply the products with high accuracy and high quality to satisfy the customers’ various applications. QMA series omni wheel has achieved small clearance in axial direction of driven wheel with steady improvement, they can be especially used on different small robots.
- Feature
- produced by high precious technologysmall clearance in axial direction of driven wheelMulti-subdivision design2 bearings embedded in every driven wheelhigh quality rubbernickel-plated on the hub surfaceContinuous improving QMA series omni wheel

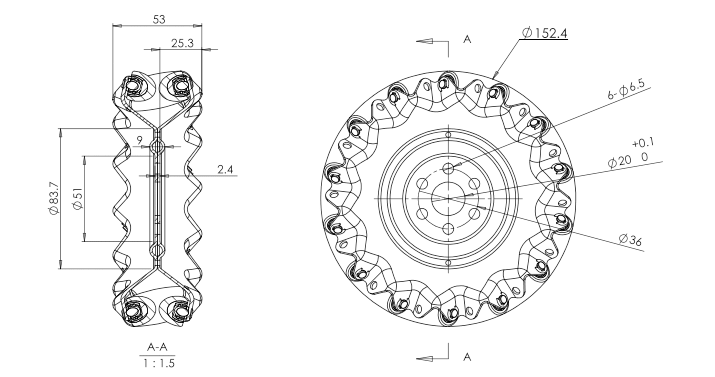

- Dimension
- Detailed Images
Diameter: 152.4（6"）mm Wide: 53mm Wheels: 14 Bearing: 28 Bearing Type: Rolling Bearing Wheel Material: Rubber Hub Material: Carbon Steel Hub Surface Treatment: Electronickelling Mount: Flange Typical Middle Hole Size: 20mm Weight: 770g Load: 35Kg
- Display
-

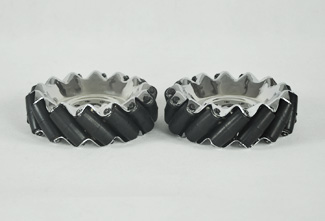

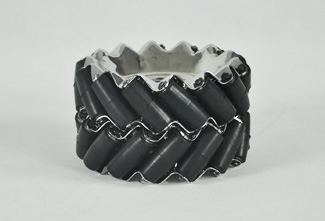

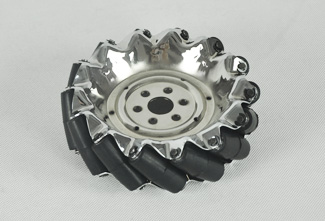

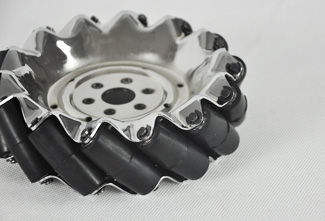

Realistic picture
Realistic picture
Realistic picture
Realistic picture - Document download
- QMA-15CN.pdf
