| Product |  QMA-10 |
 QMA-15 |
 QMA-20 |
| Diameter(mm) | 101.6（4"） | 152.4（6"） | 203.2（8"） |
| Wide(mm) | 45.7 | 53 | 53.8 |
| Wheels | 10 | 14 | 18 |
| Bearing | 20 | 28 | 36 |
| Bearing Type | Rolling Bearing | ||
| Wheel Material | Rubber | ||
| Hub Material | Carbon Steel | ||
| Hub Surface Treatment | Electronickelling | ||
| Mount | Flange | ||
| Typical Middle Hole Size(mm) | 12 | 20 | 20 |
| Weight(g) | 350 | 770 | 1200 |
| Load(kg) | 30 | 35 | 40 |
- produced by high precious technology
- The wheel hub, molded by cold compressing steel plates ,is light to carry and has stable quality. The holes are punched by 5-axis machining center after cold compression molding, which ensures the final accuracy of the wheel hub.
- small clearance in axial direction of driven wheel
- Using manufacturing technology with high precision and operating compensation process for the clearance during the final assembly process maintains the clearance in axial direction of driven wheel in small range .
- Multi-subdivision design
- Even if the frame is not precise , the multi-subdivision of the circumference can make it stably operate .Avoiding the drawback of up and down vibration from usual omni wheel .
- 2 bearings embedded in every driven wheel
- 2 miniature bearings are embedded in every driven wheel , changing the sliding friction on driven wheel into rolling friction, smoothly the lateral movement , and truly realizing micro-resistance in lateral movement of omni wheel .
- high quality rubber
- The driven wheel adopts high-quality rubber , accompany with drum-shape and appropriate hardness.The Ql series omni wheel shows strong grip ability and almost silent in the process of measuring and testing on wood , tile, carpet and so on.
- nickel-plated on the hub surface
- nickel-plated on the hub surface , attractive and durable.

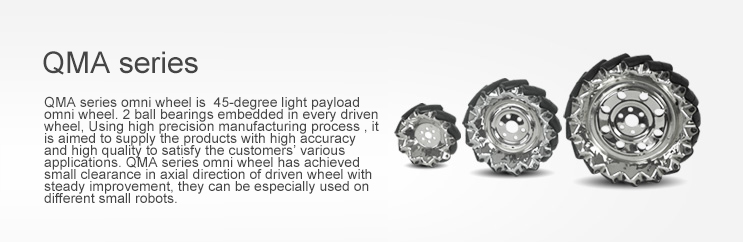

- Continuous improving QMA series omni wheel
- steady improvement is the traits of Hangfa product, it can ensure the customers get the best products and service .
