| Product | QLM-15 |
QLM-20 |
QLM-24 |
QLM-25 |
QLM-28 |
QLM-31 |
QLM-36 |
QLM-40 |
QLM-40A |
| Diameter(mm) | 152.4（6"） | 203.2（8"） | 240 | 254 | 280 | 310 | 360 | 406.4（16"） | 406.4 |
| Wide(mm) | 56 | 75 | 107 | 133 | 227 | 161 | 257 | 180 | 210 |
| Wheels | 12 | 12 | 12 | 8 | 6 | 8 | 6 | 10 | 8 |
| Bearing Type | Rolling Bearing | ||||||||
| Wheel Material | Rubber/Polyurethane | Polyurethane | |||||||
| Hub Material | Aluminum | Steel | |||||||
| Hub Surface Treatment | No Treatment | High-Temperature Painting | |||||||
| Mount | Flange | ||||||||
| Typical Middle Hole Size(mm) | 20 | 45 | 55 | 70 | |||||
| Weight(kg) | 0.94 | 2.2 | 12.5 | 11 | 28 | 37 | 44 | 45 | 53 |
| Load(kg) | 50 | 100 | 200 | 450 | 800 | 800 | 1500 | 1200 | 1600 |

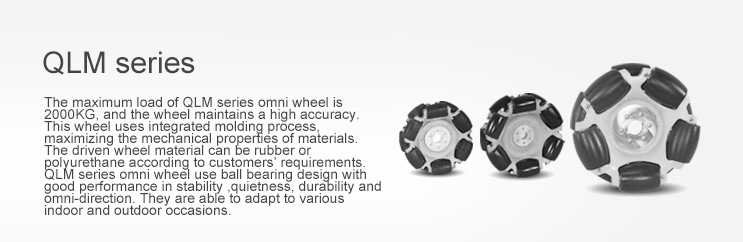

- integrated molding process hub , high intensity ,high stiffness
- This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable .
- Rolling Bearing
- Compared to sliding bearings and products without bearings structure, QLM series omni wheel, which adopts rolling bearing design, hasadvantage such as little friction, high precision ,high reliability ,convenient fix, and it can be suitable for the continuous use.
- payload between 0-2000KG
- this series can load 2000KG maximum
- industrial-grade quality
- design and manufacture in accordance with industry standard
