- ULB-16
- Product Description
- ULB-16，16-channel integrated with ultrasonic detectors, unified and coordinated management, accurate fault location of objects within the 0.25~3 m. Users can take advantage of using methods, custom ranging module of 16 road works such as order grouping, ranging, and with RS232 communication via CAN bus, programming and data reading the entire module. The module can greatly simplify the coordination of parent device to multi-sensor management for easy system integration and increase system stability. 16 distance measurement sensor protection class IP65, able to adapt to outdoor applications.
- Feature
- Unified management of 16 sensors, programmable logic controlSensor protection ratingIP65Temperature compensation functionCAN bus RS232 communicationInterface

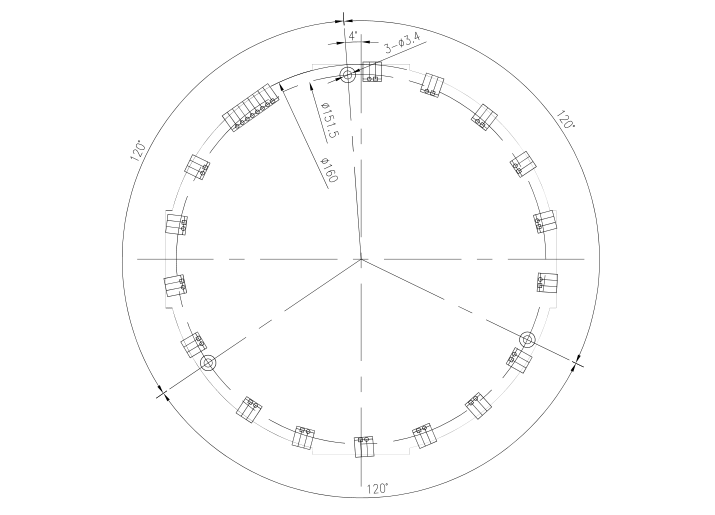

- dimension

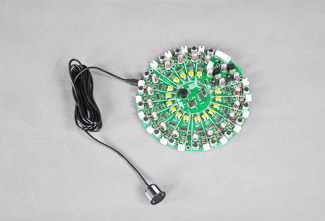

- Detailed Images
Control Board Dimensions： Diameter160mm Range： 0.25~3m Each probe maximum range frequency： 50Hz Number of sensors： 16個 Sensor cable length： 1m/2.5m Sensor protection rating： IP65 Removable temperature compensation sensor： Standard Communication Interface： CAN-bus, RS232 serial port Input voltage： DC12V Input voltage： DC12V Typical standby current： 100mA Typical operating current： 900mA Main parts： Control Board×1、超聲測距探頭×16、溫度傳感器×1、CD×1
- Display
-
ULB-16 - Typical areas of application
- RobotIndustrial Automation
- Download
- ULB-16.pdf
