- CMA-45 Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

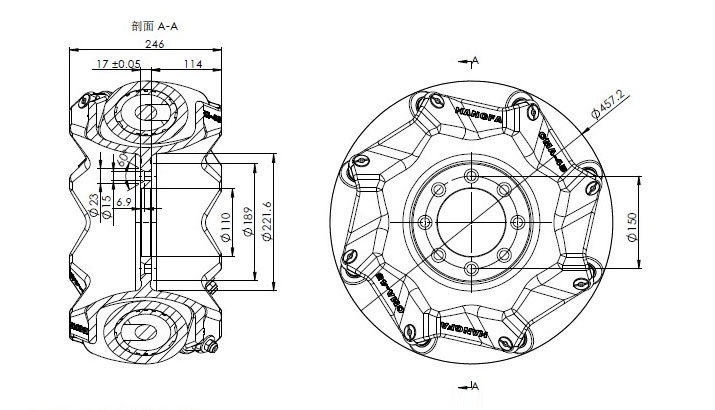

- Dimension
- Detailed Images
Diameter: 457.2mm Wide: 246mm Wheels: 8 Bearing Type: heavy duty Rolling Bearing Wheel Material: Polyurethane Hub Material: carbon steel Flange Plate Thinckness: 17mm Flange Plate Diameter: 189mm Flange Cavity Inner diameter: 221mm Typical Middle Hole Size: 110mm Weight: 76Kg Load: 1900Kg Hub Surface Treatment: High-Temperature Painting Flange Screw: 8-M14*1.5 Hub Bolt
- Display
-

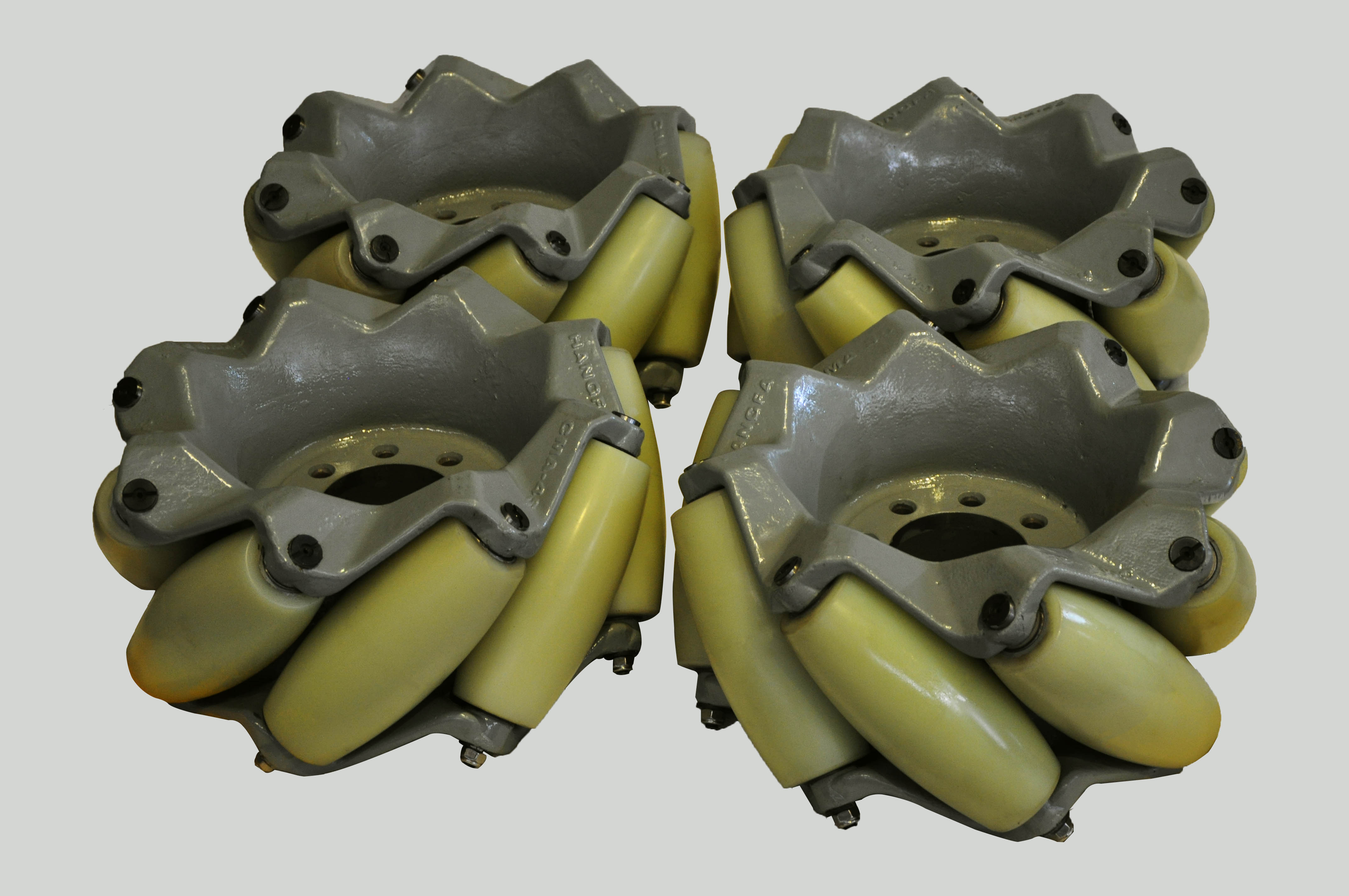

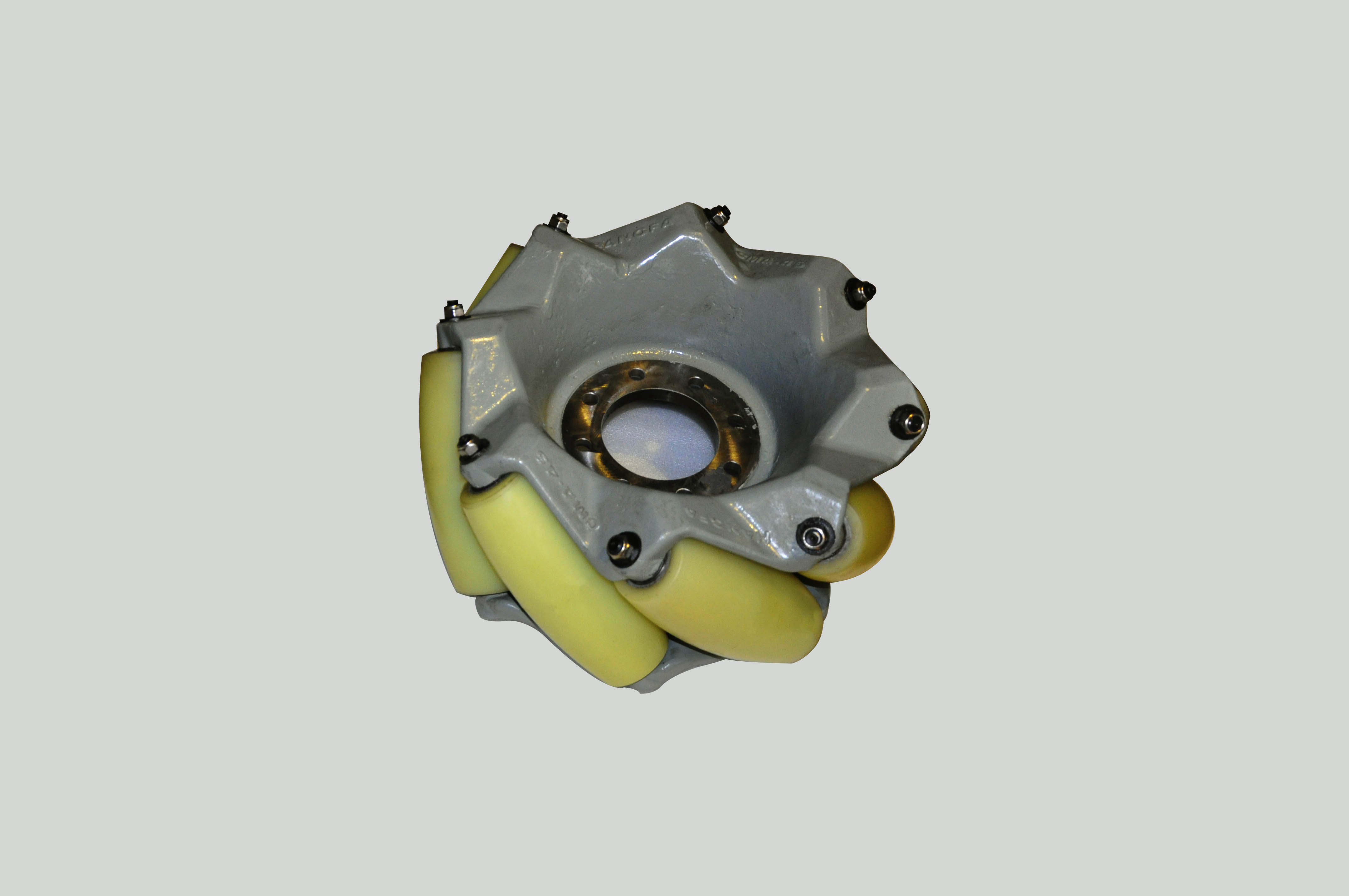

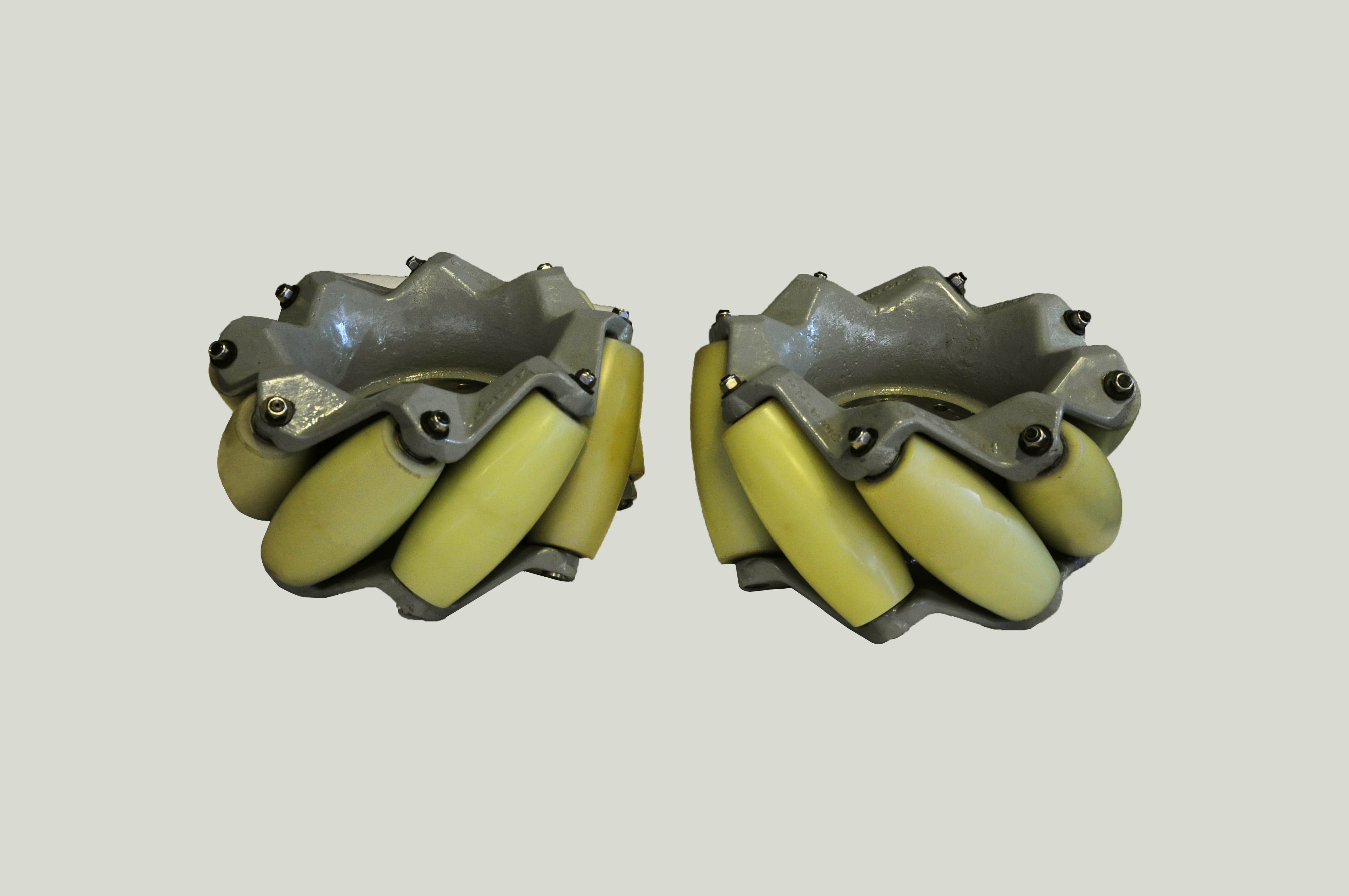

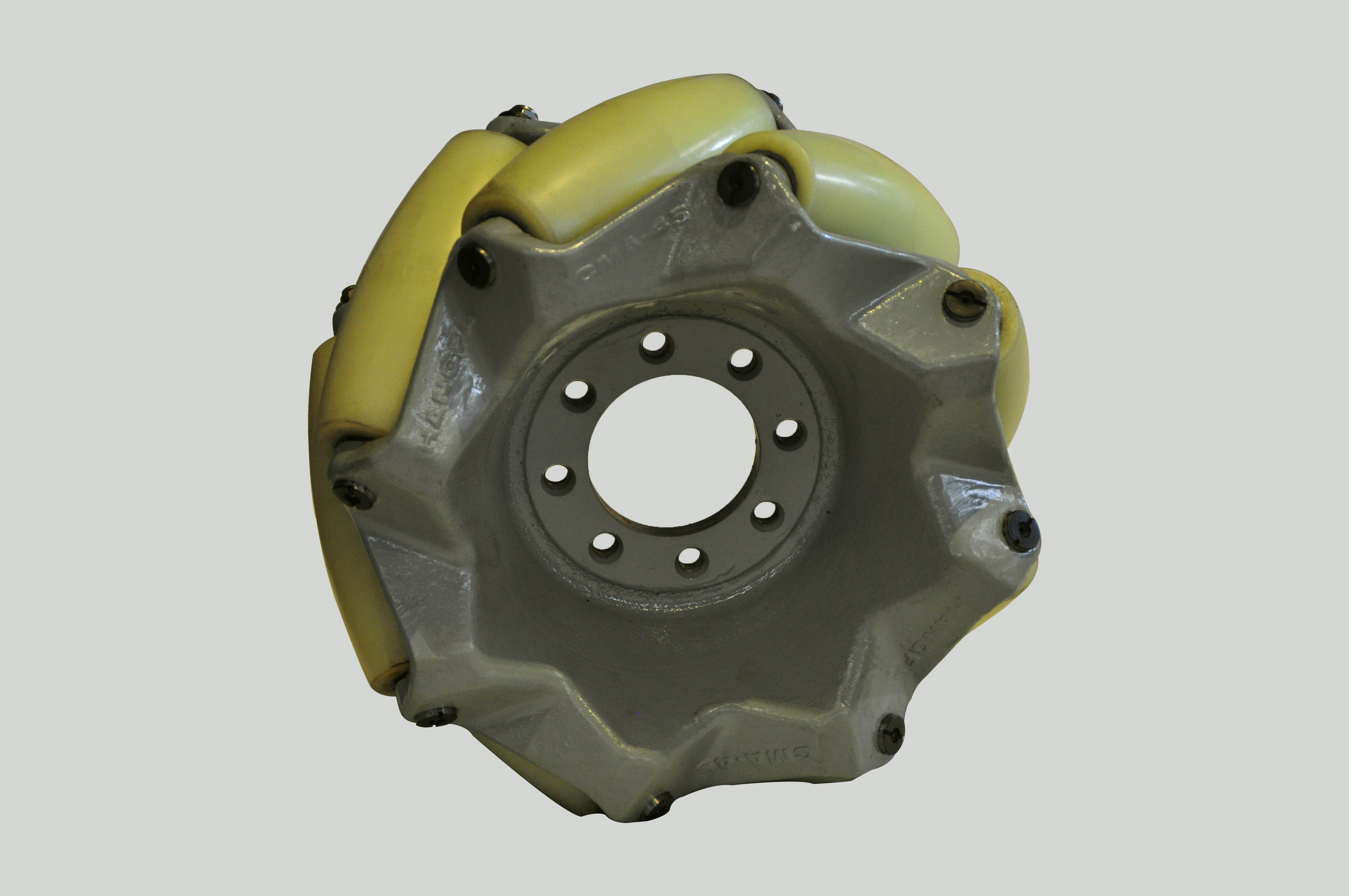

Realistic picture
Realistic picture
Realistic picture
Realistic picture - Document download
- CMA-45EN.pdf
