- CMA-50 Omni Wheel
- Product Description
- CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

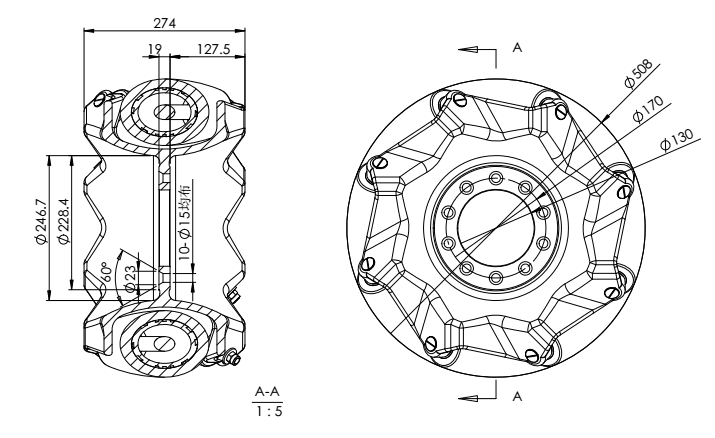

- Dimension

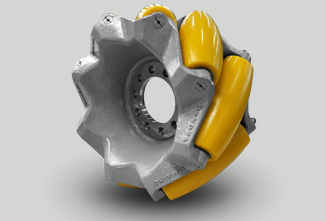

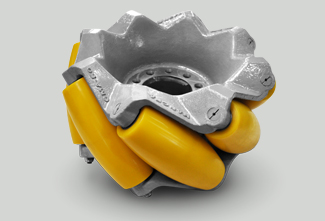

- Detailed Images
Diameter: 508mm Wide: 273mm Wheels: 8 Bearing Type: heavy duty Rolling Bearing Wheel Material: Polyurethane Hub Material: steel Flange Plate Thinckness: 19mm Flange Plate Diameter: 210mm Flange Cavity Inner diameter: 234mm Typical Middle Hole Size: 130mm Weight: 100Kg Load: 2300Kg Hub Surface Treatment: High-Temperature Painting

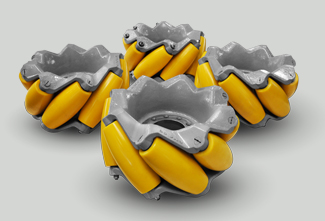

- Display
-
Realistic picture
Realistic picture
Realistic picture
Realistic picture - Document download
- CMA-50EN.pdf
