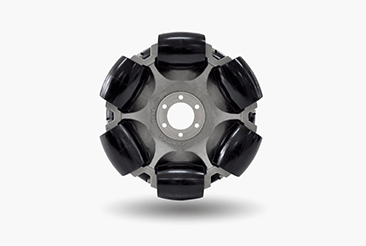

- QLM-24 Omni Wheel
- Product Description
- The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-2000KGindustrial-grade quality

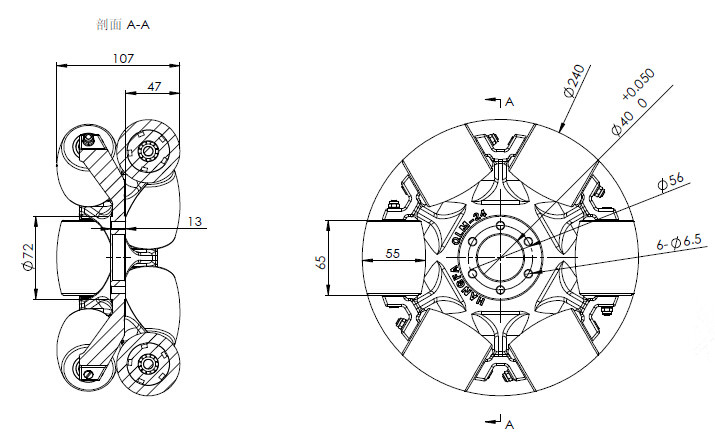

- Dimension
- Detailed Images
Diameter: 240mm Wide: 107mm Wheels: 12 Weight: 12.5Kg Bearing Type: Rolling Bearing Wheel Material: Polyurethane Hub Material: Aluminum Hub Surface Treatment: No Treatment Flange Screws: M6 Load: 200Kg
- Display
-

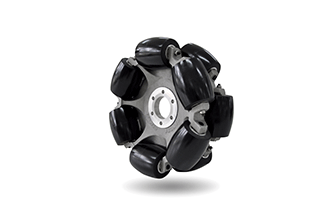

Realistic picture

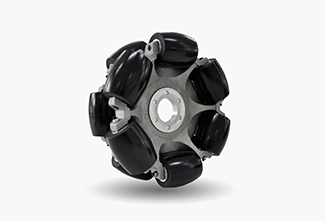

Realistic picture

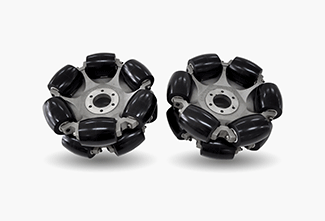

Realistic picture
Realistic picture - Document download
- QLM-24CN.pdf
