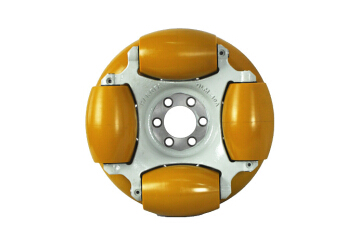

- QLM-40A Omni Wheel
- Product Description
- The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-2000KGindustrial-grade quality

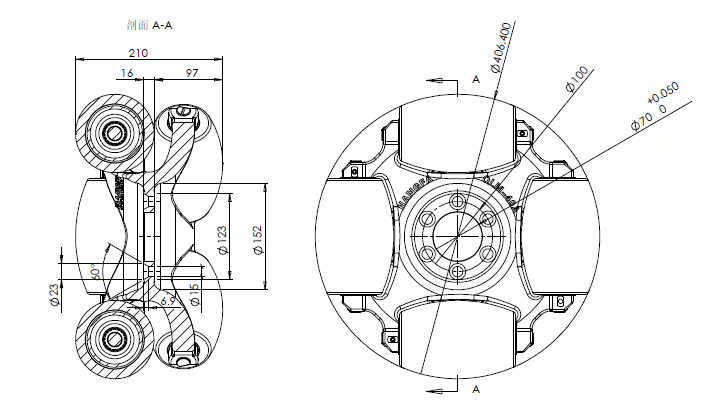

- Dimension
- Detailed Images
Diameter: 406.4mm Wide: 210mm Wheels: 8 Screw pitch circle diameter: 100mm Bearing Type: Rolling Bearing Flange Screw: 6-M15 Hub Material: Carbon Steel Flange Thickness: 16mm Flange Diameter: 123mm Middle Hole Size: 70mm Weight: 53Kg Load: 1600Kg Flange Cavity Inner Diameter: 152mm
- Display
-

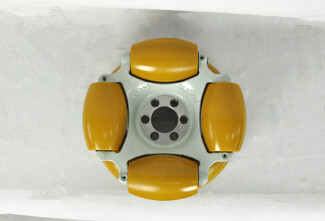

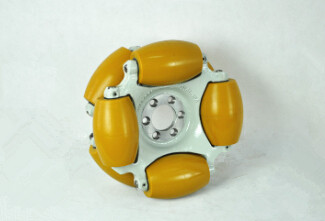

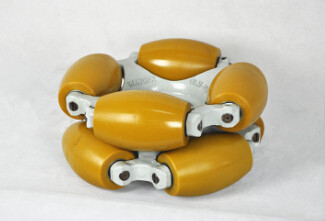

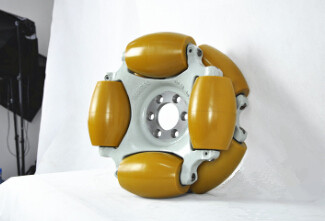

Realistic picture
Realistic picture
Realistic picture
Realistic picture - Document download
- QLM-40ACN.pdf
